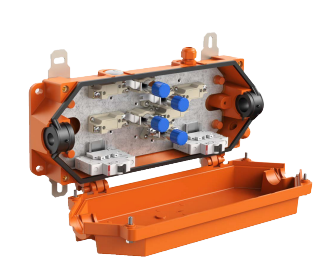

Intrinsic Fire Resistant Box For Tunnels

Fire resistant Box with fire function guarantee (survival guarantee) E90 (acc. to DIN 4102) for tunnel application

90 mins Fire Survival
VDE tested. IP66/67, IK09,
Pressure and Suction tested according to the specification of Alp transit Gotthard AG
Halogen free
Tested according to DIN 4102 part 12 by MPA Dresden VDE (DIN EN 60670-1 & EN 60670-22)

E30 – E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX – FUNCTIONAL GUARANTEE BOXES
ENCLOSURE SIZE	MODEL	DETAILS
Rapid-Box HT 16²	WKE Rapid-Box HT 1x3 16² 1F	rated current 63A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 1 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 17-22mm
Rapid-Box HT 16²	WKE Rapid-Box HT 2x3 16² 2F	rated current 63A. Fuse and feedback-free junction 4-pole to 2.5²mm, fuse protection with 2 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 17-22mm
Rapid-Box HT 50²	WKE Rapid-Box HT 1x3 50² 1F	rated current 100A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 1 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 21 - 26mm
Rapid-Box HT 50²	WKE Rapid-Box HT 2x3 50² 2F	rated current 100A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 2 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 21 - 26mm

E30-E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX FOR TUNNEL
RANGE	MODEL	DETAILS
WKE 6T WITH D01	WKE 6 T 1D01	5-pole 1.5 - 16 mm², fuse in branch 1 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²
	WKE 6 T 2D01	5-pole 1.5 - 16 mm², fuse in branch 2 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²
	WKE 6 T 3D01	5-pole 1.5 - 16 mm², fuse in branch 3 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²
WKE 6T DUO	WKE 6 T Duo 5 x 16²	5-pole, 1.5 - 16 mm², per pole: 20 x 1.5² / 16 x 2.5² / 12 x 4² / 8 x 6² / 4 x 10² / 4 x 16²
