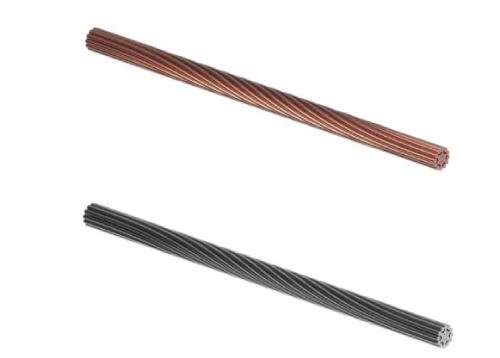

Stranded Conductor

Used for earth termination, equipotential bonding and structural earthing system.
Meets the requirement of IS/IEC 62305 and tested as per IEC 62561-2
Coil length : 100 m

Type	Nominal Diameter(mm)	CSA(mm²)	Material	Weight(kg/m)	Article Number
BCSC 50	8.0	50	Cu	0.43	401 018
BCSC 70	9.5	70	Cu	0.60	400 018
BCSC 100	11.3	100	Cu	0.90	402 018
SSSC 50	8.0	50	SS304	0.30	403 018
